Test Report
Introduction
The Partner Management System Revamp testing scope includes the following: Features: MISP Partner, ABIS Partner, Authentication Partner, Device Partner, FTM Partner, Credential Partner, Manual Adjudication Partner, Online Verification Partner, MISP Partner, ABIS Partner, Partner Admin, Certificate Trust Store, Partners, Policies, Partner-Policy Linking, SBI-Device, FTM Chip, Authentication Services, User Profile, User Dashboard, Root CA Certificate expiry notifications, Intermediate Certificate expiry notifications, Partner Certificate expiry notifications, API Key expiry notifications, FTM Chip expiry notifications, SBI ID expiry notifications, and Weekly Summary notifications for Partner Certificate, API Key, FTM Chip, and SBI ID expiry.
Overview and Scope
The scope of testing defines the boundaries, functionalities, and features that will be tested for the Partner Management System (PMS) Revamp. This ensures comprehensive validation of critical workflows while clearly identifying what is included and excluded from testing.
Functional Features: MISP Partner, ABIS Partner, Authentication Partner, Device Partner, FTM Partner, Credential Partner, Manual Adjudication Partner, Online Verification Partner, Partner Admin, Certificate Trust Store, Partners, Policies, Partner–Policy Linking, SBI–Device Mapping, FTM Chip, Authentication Services, User Profile, User Dashboard.
Cross-Platform Support:
Multilingual: English, Arabic, French
Multi-Browser: Edge, Firefox, Chrome
Devices: Windows
Testing Types: Sanity, Regression
Cross-browser testing
Test Approach
The scope of testing is to verify fitment to the specification from the perspective of:
Functionality
Combination
UI Automation
API automation
Library verification
Test Planning
This Test Plan outlines the testing approach, scope, resources, and schedule for the Partner Management System (PMS) Revamp. The objective is to ensure that all functional, integration, and non-functional requirements are met with high quality before release.
Validate end-to-end functionality of the Partner Management System Revamp.
Ensure system stability across supported browsers, devices, and languages.
Sanity Scenarios Verified
Sanity testing will be performed to ensure basic application stability before detailed test execution. The following high-level sanity scenarios will be verified:
Application accessibility and successful login for different partner roles
Core partner creation and management flows (Device Partner, Authentication Partner, FTM Partner)
Partner Admin work flow
Authentication services basic validation
Certificate upload and validation
User profile and dashboard accessibility
Device Partner: Created and managed device partners, including device creation and configuration
Auth Partner: Created and managed Auth partners and their authentication configurations by creating auth policies, OIDC client ID and API Key
FTM Partner: Created and managed FTM partners, including FTM chip creation and configuration.
Only upon successful completion of sanity testing the build will be accepted for full regression and integration testing.
Docker Versions
Component
docker.io/mosipdev/alpine:latest
docker.io/mosipdev/apitest-auth:release-1.2.2.x
docker.io/mosipdev/apitest-idrepo:release-1.2.4.x
docker.io/mosipdev/dsl-orchestrator:release-1.5.x
docker.io/mosipdev/dsl-packetcreator:release-1.5.x
docker.io/mosipid/admin-service:1.2.1.4
docker.io/mosipid/admin-ui:1.2.0.1
docker.io/mosipid/admintest:1.2.0.1
docker.io/mosipid/apitest-idrepo:1.2.3.0
docker.io/mosipid/apitest-masterdata:1.2.1.3
docker.io/mosipid/apitest-prereg:1.2.0.3
docker.io/mosipid/apitest-resident:1.2.1.3
docker.io/mosipid/artifactory-server:1.2.0.2
docker.io/mosipid/artifactory-server:1.2.0.4
docker.io/mosipid/artifactory-server:1.4.1-ES
docker.io/mosipid/biosdk-server:1.2.0.1
docker.io/mosipid/captcha-validation-service:0.1.0
docker.io/mosipid/clamav:1.3.0_base
docker.io/mosipid/commons-packet-service:1.2.0.4
docker.io/mosipid/config-server:1.1.2
docker.io/mosipid/consolidator-websub-service:1.2.0.1
docker.io/mosipid/data-share-service:1.2.0.2
docker.io/mosipid/data-share-service:1.3.0-beta.2
docker.io/mosipid/digital-card-service:1.2.0.1
docker.io/mosipid/dsl-orchestrator:1.2.2.0
docker.io/mosipid/dsl-orchestrator:1.3.0
docker.io/mosipid/dsl-orchestrator:1.4.0
docker.io/mosipid/dsl-packetcreator:1.2.2.0
docker.io/mosipid/dsl-packetcreator:1.3.0
docker.io/mosipid/esignet:1.4.1
Test Execution Report
Below are the test metrics by performing functional testing. The process followed was black box testing which based its test cases on the specifications of the software component under test. The functional test was performed in combination with individual module testing as well as integration testing. Test data were prepared in line with the user stories. Expected results were monitored by examining the user interface. The coverage includes GUI testing, System testing, End-To-End flows across multiple languages and configurations.
Test Case Execution Summary
The Test Case Execution Summary section provides a detailed overview of the total test cases executed across platforms, including pass, fail, and skip counts. It includes a table summarizing results and observations on execution pass rates.
Test Case - Manual Verification (UI)
Verified from the API Test rigs, hence marking it as NA.
Total
Passed
Failed
Skipped (N/A)
NA
NA
NA
NA
Test Case - Manual Verification (API)
Total
Passed
Failed
Skipped (N/A)
511
497
0
12
Test Rate: 99% with Pass Rate: 100%
Automation Results
This section provides a summary of the automated test execution. It shows the pass, fail, and known issues from the automated test suite.
Automation Execution Result - API Testrig
Total
Passed
Failed
Skipped (N/A)
Ignored
Known issues
511
497
0
0
2
12
Test Rate: 100% with Pass Rate: 100%
Detailed Test Metrics
Below are the detailed test metrics by performing Manual/automation testing. The project metrics are derived from Defect density, Test coverage, Test execution coverage, test tracking and efficiency.
The various metrics that assist in test tracking and efficiency are as follows:
Passed Test Cases Coverage: It measures the percentage of passed test cases. (Number of passed tests / Total number of tests executed) x 100
Failed Test Case Coverage: It measures the percentage of all failed test cases. (Number of failed tests / Total number of test cases executed) x 100
Test Execution Report (Cross-Platform)
Verification is performed on various configurations with verified configuration for 3 languages (English/Arabic/French).
Browser Compatibility Evaluations
Browser Versions Tested on Desktop/Laptop
Sl.No
Browser
Versions
1
Chrome
NA
2
Firefox
NA
3
Edge
NA
Browser Versions Tested on Tablet Device
Sl.No
Browser
Versions
1
Chrome
NA
2
Firefox
NA
3
Edge
NA
Browser Versions Tested on Extra-Large Screens
Sl.No
Browser
Versions
1
Chrome
NA
2
Firefox
NA
3
Edge
NA
4
Safari
NA
Screen Sizes Used for UI Responsiveness Validation
Laptop/Desktop: 1920x1080
Tablet: NA
Extra-large screens: NA

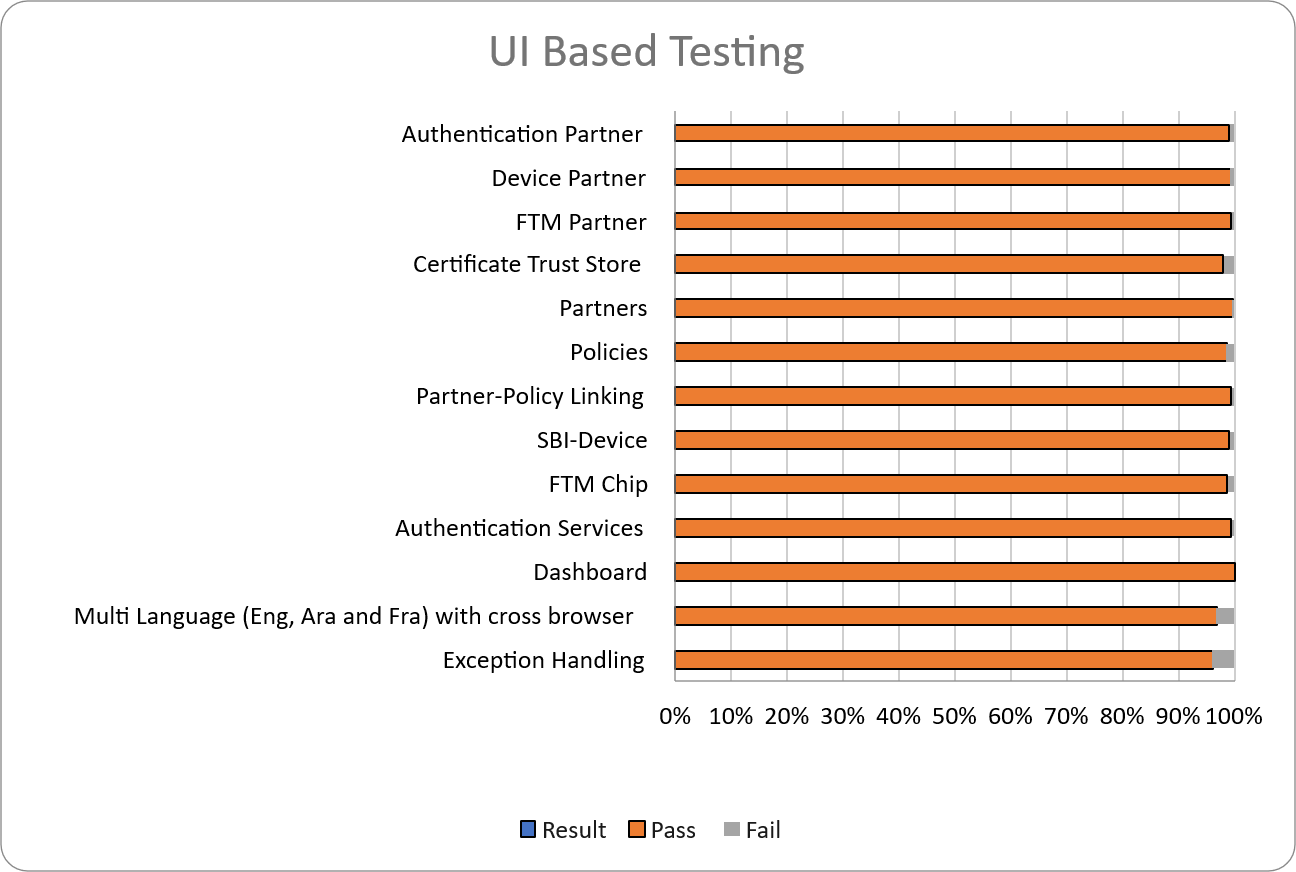

Feature Health

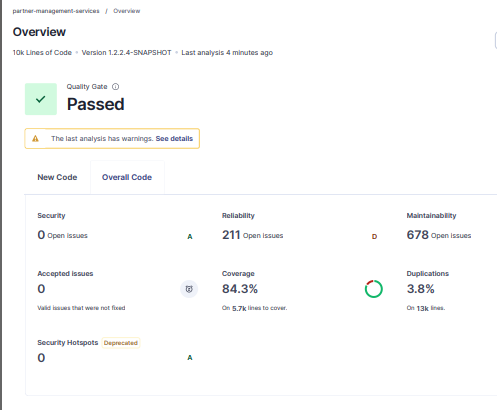

Sonar Report
Partner-Management-Service:
Conclusion
The Partner Management System 1.2.2.4 Release has been successfully validated in the qa11new environment, with all critical functionalities performing as expected.
Sanity and regression testing were completed within the defined scope.
No critical or high-severity defects remain open.
Based on the successful test execution and results, QA approves the build for release.
